saluran listrik overhead fitting kabel ujung OPGW
Deskripsi Produk
& nbsp; & nbsp;
OPGW Tension & nbsp; Clamp Components | ||
1 | U - Jangkar belenggu | Panas - menggali & nbsp; baja galvanis |
2 | Piring pengupas | Panas - menggali & nbsp; baja galvanis |
3 | Bidal Clevis | Panas - menggali & nbsp; baja galvanis |
4 | Outer armour & nbsp; rods | Aluminum clad & nbsp; steel |
5 | Inner & nbsp; reinforcing armour rods | Aluminum clad & nbsp; steel |
6 | Parallel groove & nbsp; clamp | Paduan aluminium |
7 | Earth bonding & nbsp; laed | Aluminium |
OPGW Tension & nbsp; Clamp Order Notice | ||
1 | Choose the & nbsp; suitable suspension clamp according to the outer diameter of OPGW cable & nbsp; and & nbsp;RTS.Suitable for long span river,high span valley etc. special & nbsp; place. | |
2 | the quantity & nbsp; configuration : 1 set / terminal line tower,2 sets/strain pole tower | |
3 | the turning & nbsp; direction of inner preformed wire different from the outer ones, the standard & nbsp; configuration is turning right, if turning left,please note it in the contract. | |
4 | suggest to use & nbsp; one time after the clamp afford full strain | |
5 | clamp & nbsp; strength:70KN,100KN,120KN,160KN,210KN,250KN,300KN etc. |
OPGW Tension & nbsp; Clamp Specification | ||||||
Tipe produk | suitable cable & nbsp; diameter (mm) | Inner & nbsp; reinforcing armour rods | Outer armour & nbsp; rods | warna | ||
panjang (mm) | batang No. | panjang (mm) | batang No. | |||
ONF 1000 xxx | 9.0 - 10.0 | 1400 | 13 | 900 | 6 | merah |
ONF 1110 xxx | 10.1 - 11.1 | 1500 | 14 | 1000 | 6 | jeruk |
ONF 1220 xxx | 11.2 - 12.2 | 1600 | 15 | 1100 | 6 | kuning |
ONF 1330 xxx | 12.3 - 13.3 | 1700 | 16 | 1200 | 6 | hijau |
ONF 1440 xxx | 13.4 - 14.4 | 1800 | 18 | 1300 | 6 | cyan |
ONF 1550 xxx | 14.5 - 15.5 | 1900 | 19 | 1400 | 7 | biru |
ONF 1660 xxx | 15.6 - 16.6 | 2000 | 20 | 1500 | 7 | ungu |
ONF 1770 xxx | 16.7 - 17.7 | 2100 | 21 | 1600 | 8 | hitam |
ONF 1880 xxx | 17.8 - 18.8 | 2200 | 22 | 1700 | 8 | merah |
U - Jangkar belenggu & nbsp; Tipe | Paraller plate & nbsp; type | Clevis Thimble & nbsp; type | Tensile & nbsp; Strength(KN) | Bahan |
U-7 | YL 210 070 | NHG -070 | 70 | Panas - menggali & nbsp; baja galvanis |
U-10 | YL 210 100 | NHG -100 | 100 | Panas - menggali & nbsp; baja galvanis |
U-12 | YL 210 120 | NHG -120 | 120 | Panas - menggali & nbsp; baja galvanis |
U-16 | YL 210 160 | NHG -160 | 160 | Panas - menggali & nbsp; baja galvanis |
Produk-produk terkait

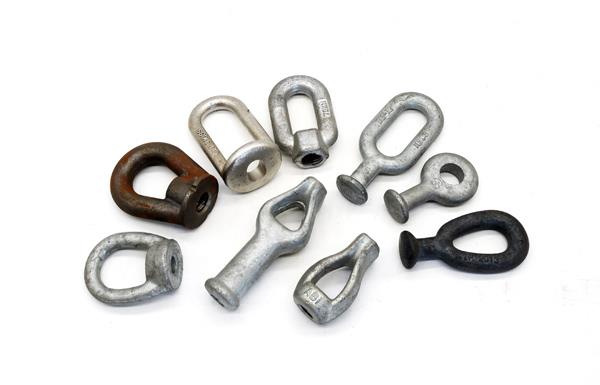

We specialize in manufacturing Overhead Line Fitting, Insulators, Fuse, such as & nbsp;bolt and nut, double arming bolt, cross arm, channel iron, D iron, clevis bracket, angle iron, long section strap, insulator spindle, twisted cross arm link, anchor ear, pole clip, stay wire, wire rope clip, guy hook, cable hoop, thimble eye nut, eye bolt, guy clamp, anchor expanding, anchor rod, stay rod, earth rod/ground rod, stay strap, earth rod, pole top pins, ball hook, shackles, ball eye, ball clevis, socket clevis, pigtail bolt, cable hook, insulator hook, strain clamp, dead end clamp, suspension clamp, parallel clamp, wire rope thimble, preformed guy grip & nbsp;and so on.
